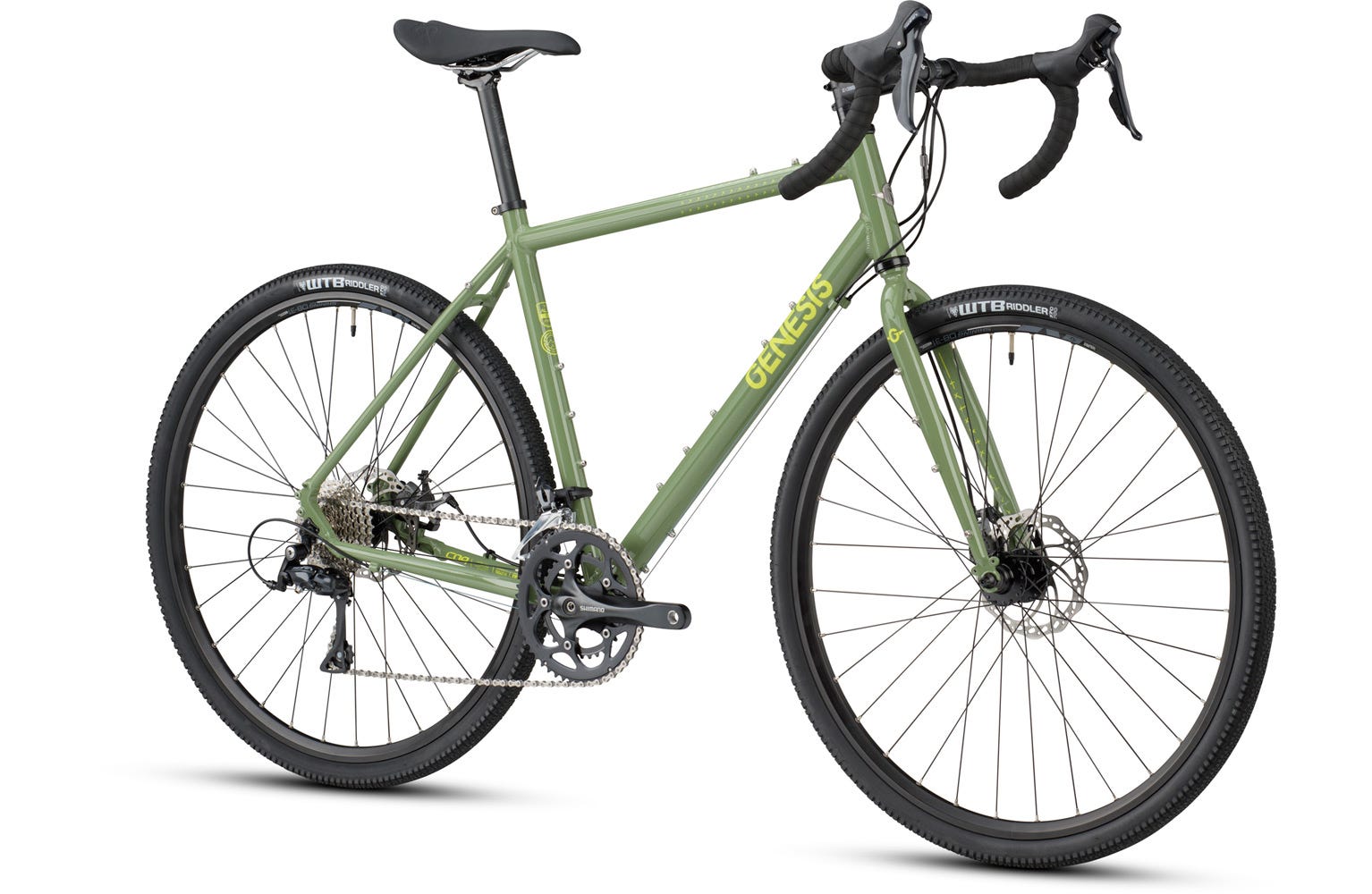

Genesis CDA 20
- It may be the Croix de Fer's little brother - but our CDA is still one mighty bike!

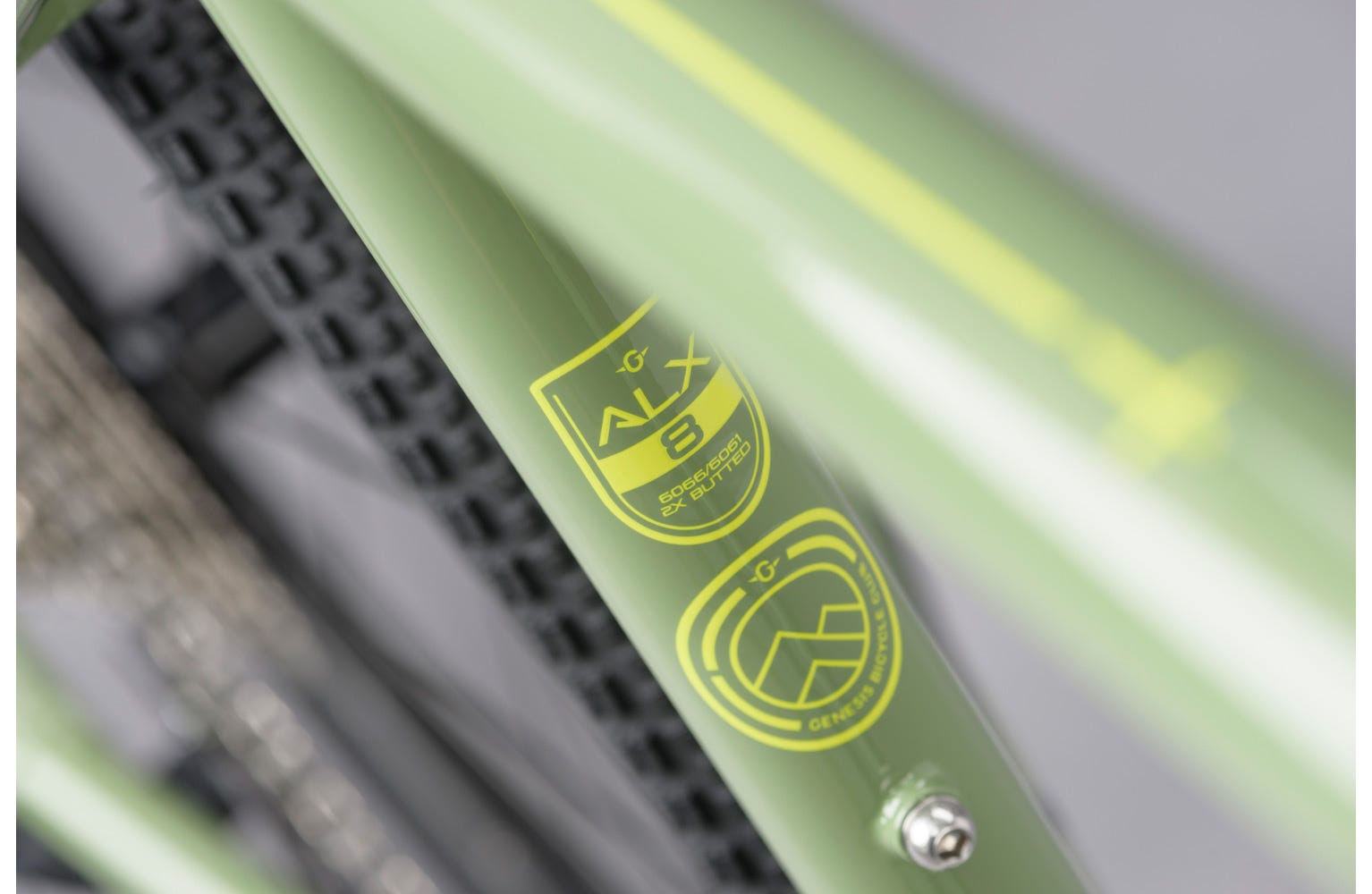

Sharing the same geometry and legendary handling as its steel counterpart, the CDA swaps out steel for aluminium and in turn passes a nice cost saving on to you.

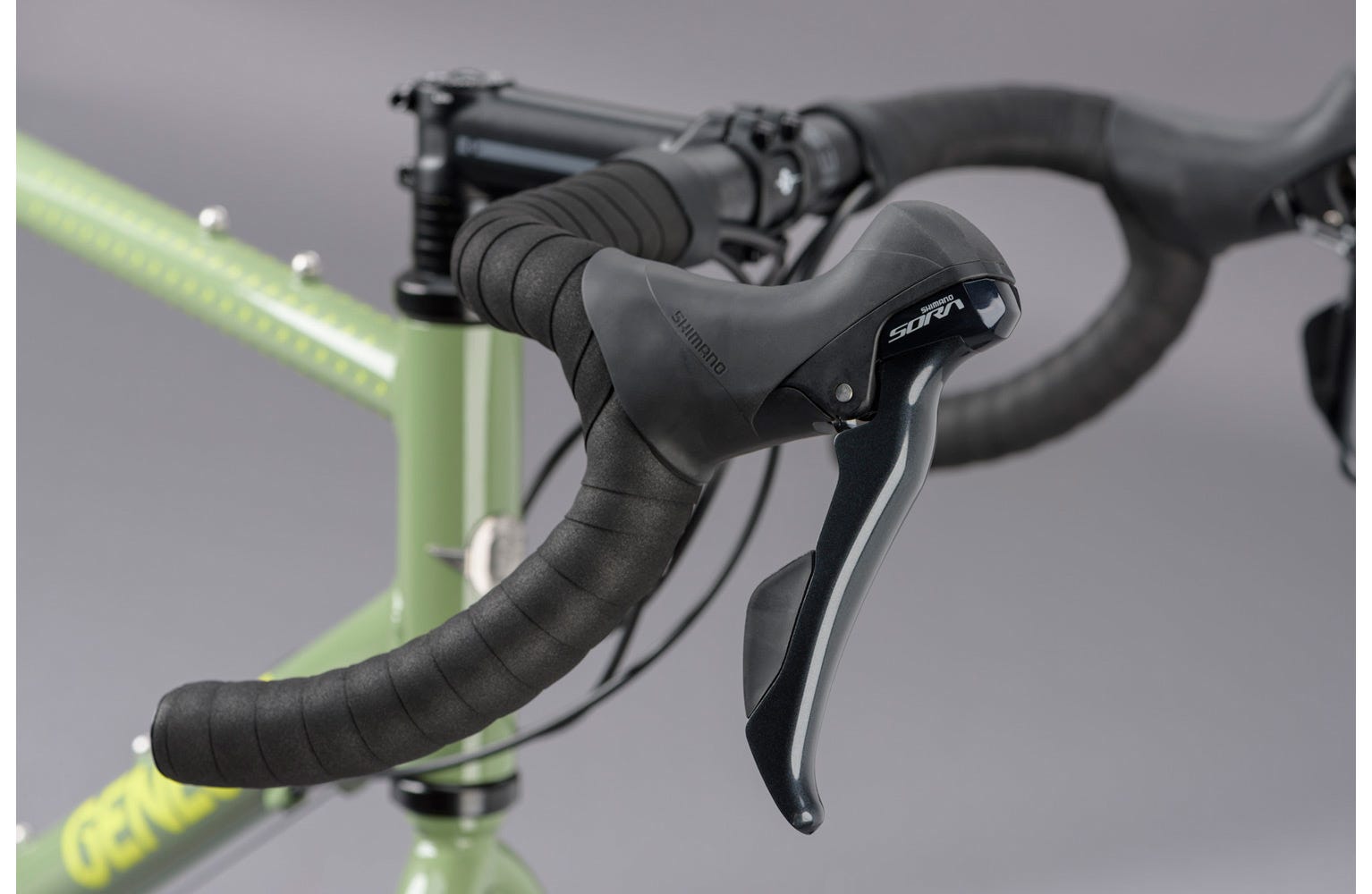

For a little more cash, the CDA 20 gets you an upgrade to Shimano's excellent 9-speed Sora levers and mechs.

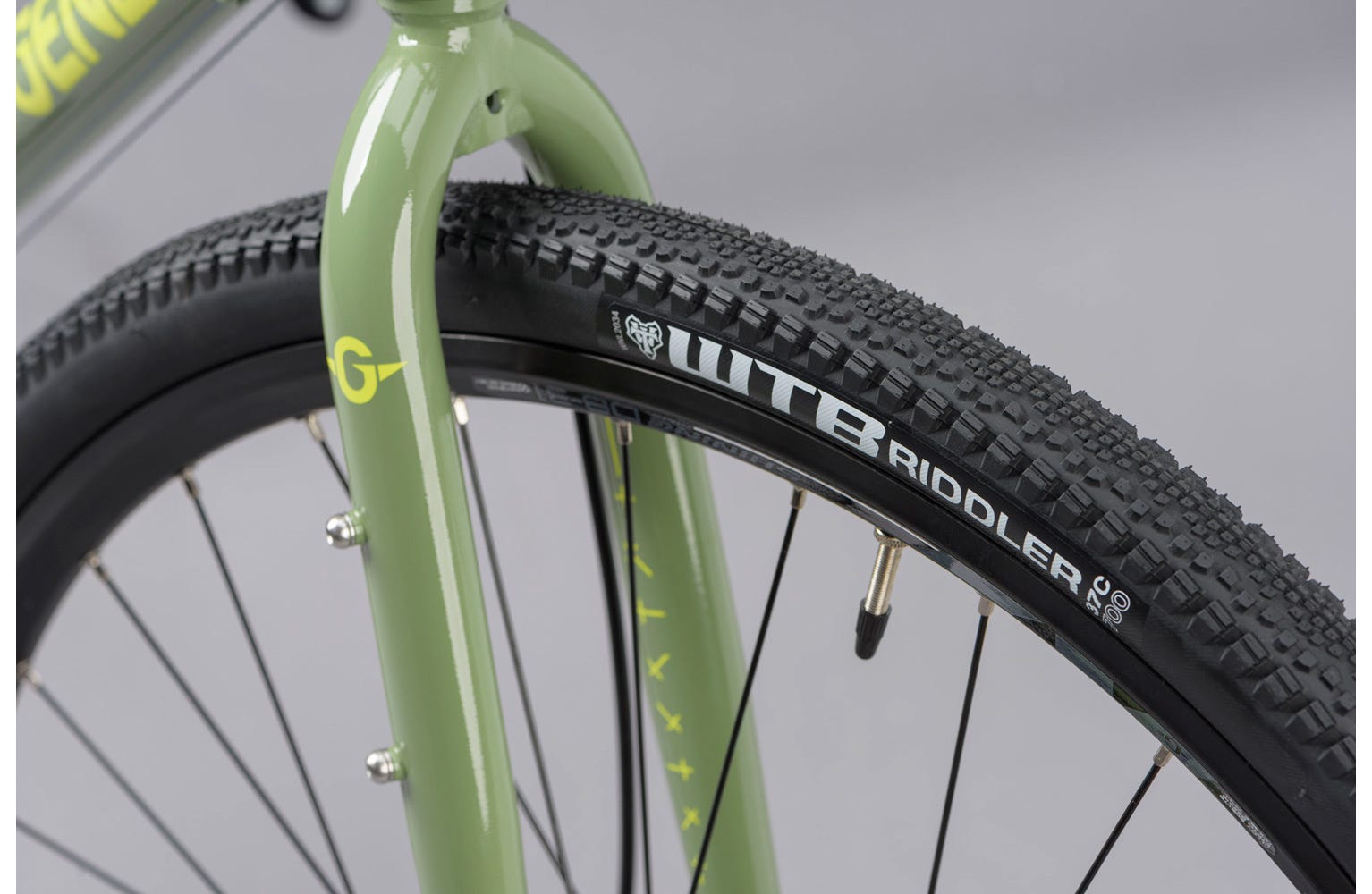

Cable disc brakes and 37mm tyres make it the perfect entry into the world of adventure bikes.

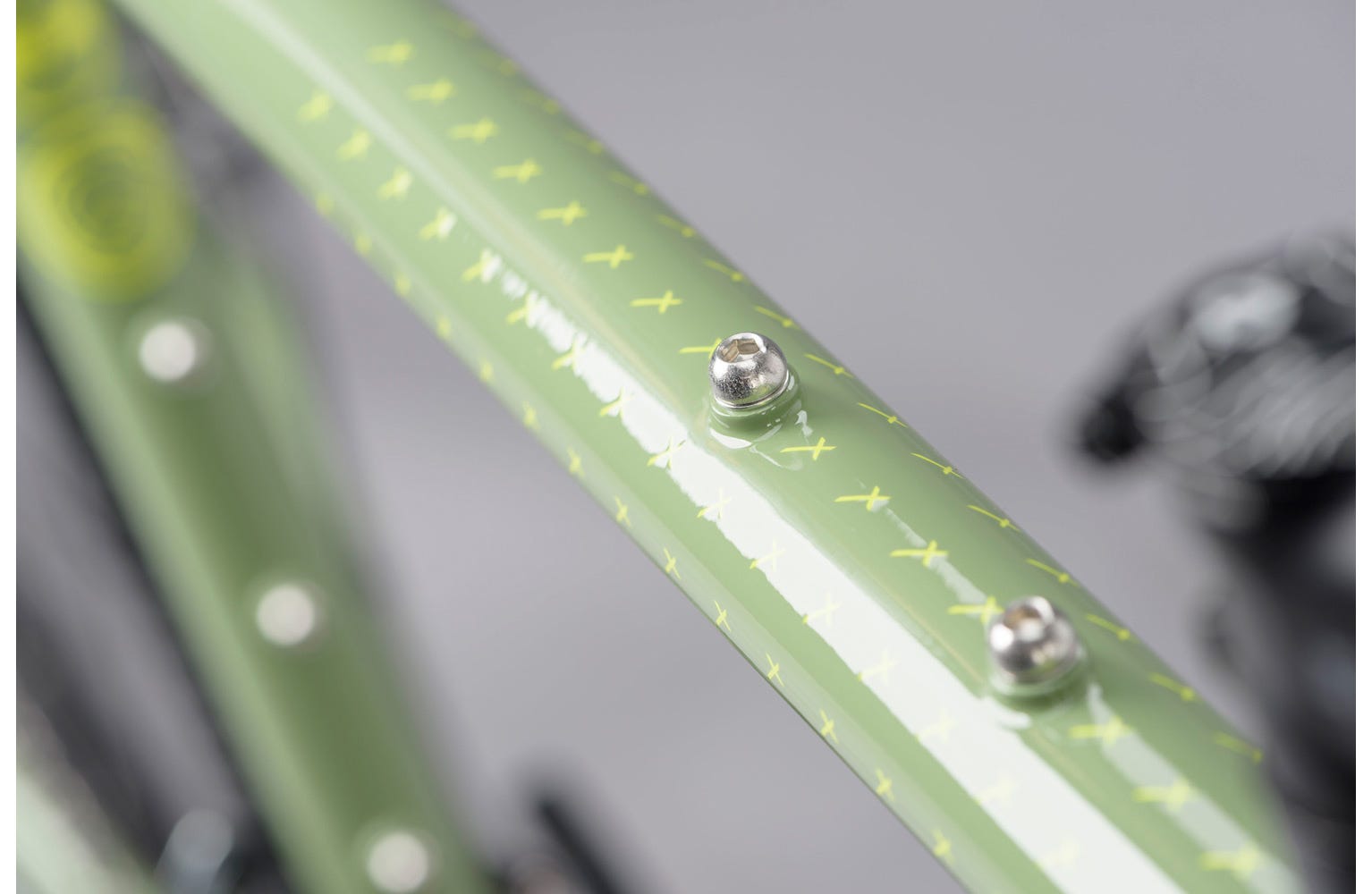

The fact that it's compatible with a pannier rack and mudguards also makes it ideal as an everyday commuting workhorse, or winter training machine.
Genesis CDA 20
SKU
VARGN21210
Bottom Bracket :
BB-ES300
Brake Levers :
Shimano Sora ST-R3000 9 Speed
Brakes :
Promax DSK-717 Mechanical Disc
Cassette Freewheel :
Shimano CS-HG400-9 11-34T
Chain :
KMC X9
Front Derailleur :
Shimano Sora FD-R3000
Grip Tape :
Genesis
Headset :
PT-1606 EC34 Upper / EC34 Lower
Hubs :
KT-K68
Pedals :
NW-91K With Cage

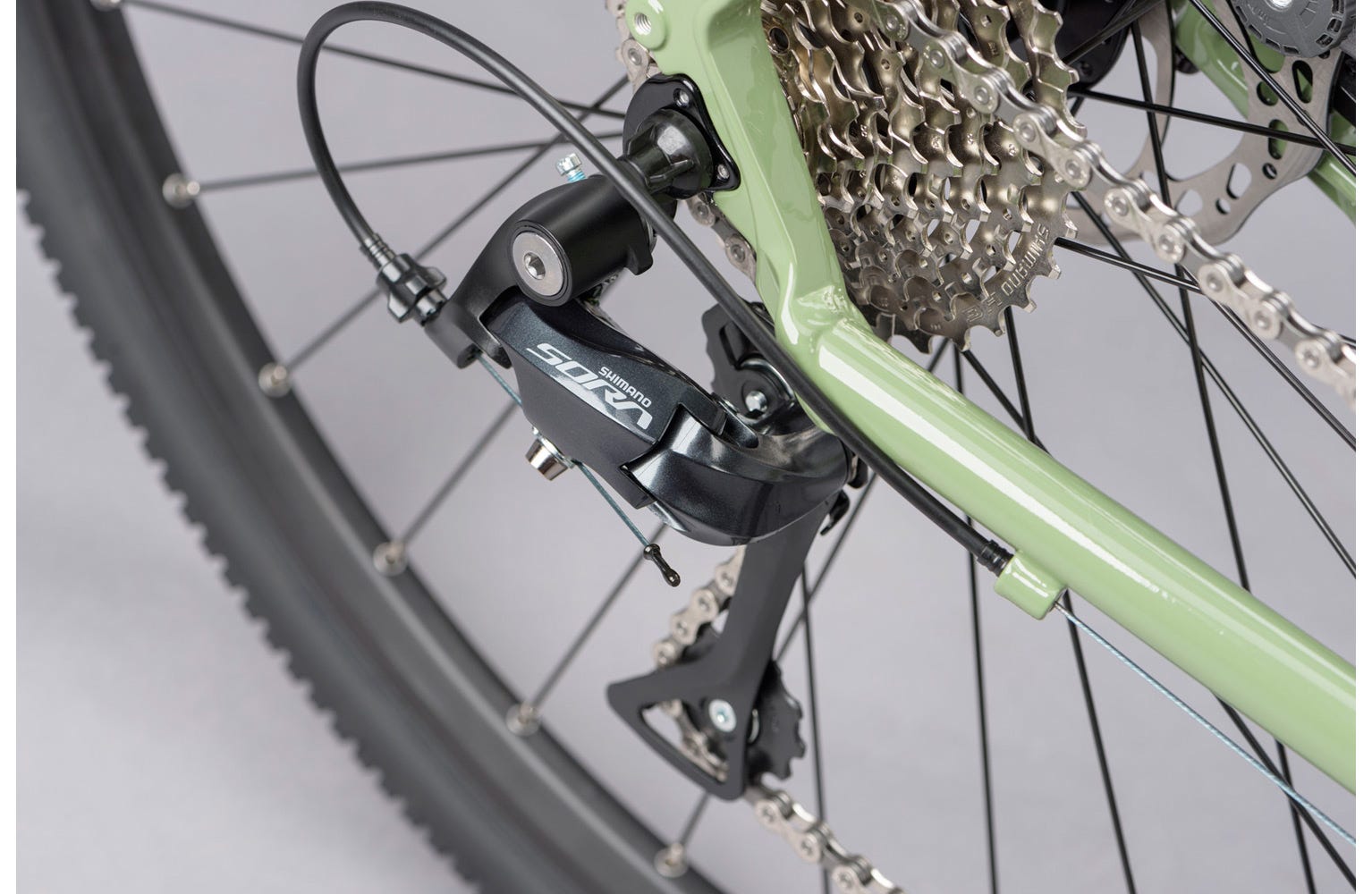

Rear Derailleur :
Shimano Sora RD-R3000 9 Speed
Rims :
Shining DB-31 32H
Saddle :
Genesis
Seat Post :
Genesis Alloy 27.2 x 350 mm
Shifters :
Shimano Sora ST-R3000 9 Speed
Spokes :
Steel 14 g
Stem :
Genesis Alloy 31.8mm -6 deg 100 mm
Tyres :
WTB Riddler Comp 700 x 37c
Wheel Size :
700c
Fork :
Genesis Chromoly With Anything Cage Mounts
Fork Material :
Chromoly
Frame Material :
Alloy
Brake Type :
Mechanical Disc
171
173
175
177
179
181
183
185
187
189
191
193
MEDIUM - 171 to 179
LARGE - 178 to 186
X-LARGE - 185 to 193
| Frame Size | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|
| Stem Length plus Reach | 485 | 495 | 505 |
| Frame Seat Tube | 530 | 550 | 580 |
| Frame Top Tube | 561 | 582 | 605 |
| Frame Reach | 385 | 395 | 405 |
| Frame Stack | 593 | 612 | 633 |
| Frame Head Tube | 155 | 175 | 195 |
| Frame Head Angle | 71.5° | 71.5° | 72° |
| Frame Seat Angle | 73.5° | 73° | 72.5° |
| Frame Chainstay | 430 | 430 | 430 |
| Frame BB Drop | 73 | 73 | 73 |
| Frame Wheel Base | 1035 | 1052 | 1063 |
| Fork Offset | 50 | 50 | 50 |
| Fork Travel | |||
| Standover | 808 | 826 | 850 |
| Stem Length | 100 | 100 | 100 |
| Handle Bar Width | 420 | 440 | 440 |
| Frame Size | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|
| Stem Length plus Reach | 485 | 495 | 505 |
| Frame Seat Tube | 530 | 550 | 580 |
| Frame Top Tube | 561 | 582 | 605 |
| Frame Reach | 385 | 395 | 405 |
| Frame Stack | 593 | 612 | 633 |
| Frame Head Tube | 155 | 175 | 195 |
| Frame Head Angle | 71.5° | 71.5° | 72° |
| Frame Seat Angle | 73.5° | 73° | 72.5° |
| Frame Chainstay | 430 | 430 | 430 |
| Frame BB Drop | 73 | 73 | 73 |
| Frame Wheel Base | 1035 | 1052 | 1063 |
| Fork Offset | 50 | 50 | 50 |
| Fork Travel | |||
| Standover | 808 | 826 | 850 |
| Stem Length | 100 | 100 | 100 |
| Handle Bar Width | 420 | 440 | 440 |
